Light Therapy Series

SunLED is introducing a portfolio of SMD LEDs for Light Therapy applications - specially curated LED products with precise wavelengths used for wrinkle reduction, acne removal, hair growth, and muscle repair. Different wavelengths of light penetrate human skin at different depths, providing a wide range of functions and benefits. SunLED’s Light Therapy LEDs uses a comprehensive selection of wavelengths paired with dome lens packages to ensure optimal performance when it comes to output and intensity. Additionally, SunLED’s PCB-type package options with compact footprints allows for high density board placement.

Features

  • Package options: 3.2x1.6x1.8mm & 3.2x2.4x2.4 with integrated dome lens
  • SMD form factor
  • Infrared Option: λP=880nm
  • Red Option: λP=660nm, λP=640nm
  • Green Option: λP=520nm
  • Blue Option: λP=465nm
  • Unique Blue, Red, Infrared tri-color package

Applications

  • Wrinkle Reduction
  • Acne Removal
  • Hair Growth
  • Muscle/Cell Repair

XZFBB55W-33.2x1.6x1.8mm (1206 Dome Lens LED)

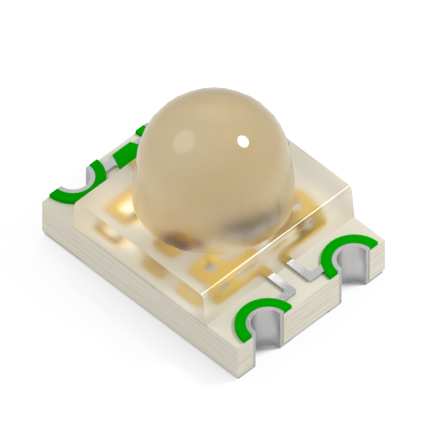

XZFBB78W3.2x2.4x2.4mm (Dome Lens LED)

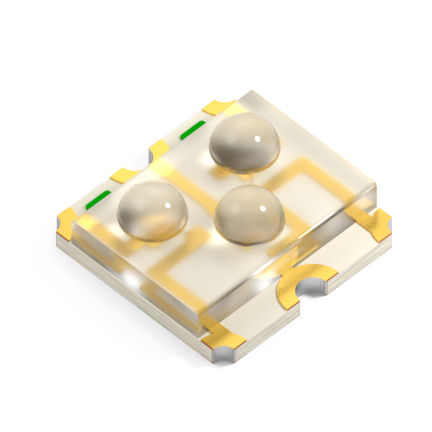

XZFBBM2ACRTHI92W-33.5x3.5x1.25mm (SMD Chip LED)
XZM2CRK55W-33.2x1.6x1.8mm (1206 Dome Lens LED)
XZM2CRK78W3.2x2.4x2.4mm (Dome Lens LED)
XZM2DG55W-33.2x1.6x1.8mm (1206 Dome Lens LED)
XZM2DG78W3.2x2.4x2.4mm (Dome Lens LED)
XZM2MR55W-33.2x1.6x1.8mm (1206 Dome Lens LED)
XZTHI55W-33.2x1.6mm (1206 Dome Lens IR)
XZTHI78W3.2x2.4x2.4mm (Dome Lens LED)
