3-Dome SMD LED Series - XZxxxxxx92W-3 Series

3-Dome SMD LED Series

SunLED releases additional color combinations to its 3-Dome SMD LED. While previously only available in an RGB color configuration, this series is now available in RGY(Red, Green, Yellow), RYB(Red, Yellow, Blue), and RBI(Red, Blue, IR). These allow for greater flexibility for various indication applications as well as light therapy.

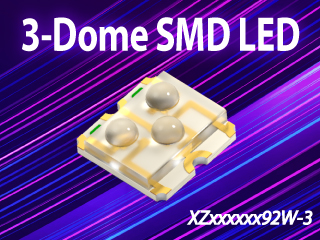

This series utilize a unique 3-Dome epoxy mold, with each emitting chip centered within each dome. This ensures that each emitting color produces optimal output when it comes to brightness. The narrow viewing angle makes this series ideal for any light pipe applications as well as high visibility requirements.

Part No.Package SizeColorLensWavelengthOptical DataViewing AngleSpec3D Drawings
Min.Typ.IF
XZFBBM2ACRDG92W-33.5x3.5x1.25mm (SMD Chip LED)Blue / Red / GreenWater Clear465nm / 640nm / 520nm380 / 2800 / 1500795 / 4990 / 2190If=20mA45°(B)/60°(R)/40°(G)
XZFBBM2ACRTHI92W-33.5x3.5x1.25mm (SMD Chip LED)Blue / Red/ InfraredWater Clear465nm / 640nm / 880nm400 / 3100 / 1.2mW597 / 4190 / 2.5mWIf=20mA50°
XZM2CRKCYKFBB92W-33.5x3.5x1.25mm (SMD Chip LED)Red / Yellow / BlueWater Clear640nm / 590nm / 465nm3100 / 1000 / 4003990 / 1395 / 597If=20mA50°
XZM2CYKCRKDG92W-33.5x3.5x1.25mm (SMD Chip LED)Yellow / Red / GreenWater Clear590nm / 640nm / 515nm1000 / 2700 / 10001590 / 3590 / 1590If=20mA50°
